HLG SERIES
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.
TECHNICAL DATA

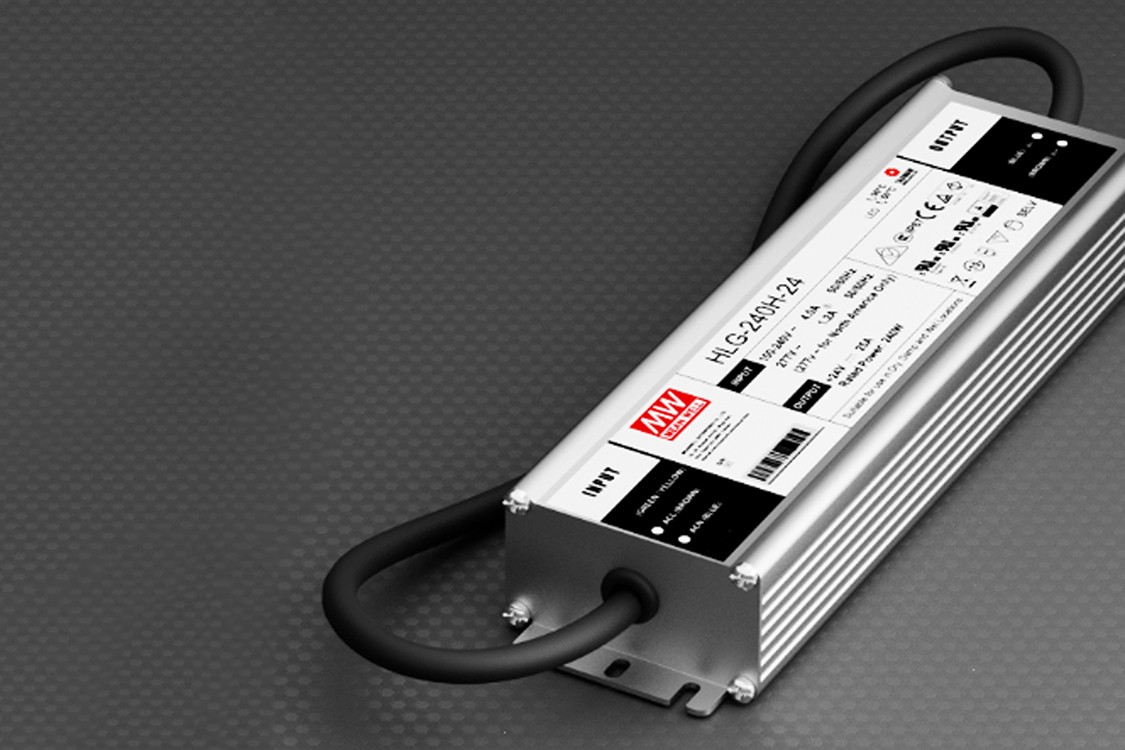

HLG-240H
* DC Voltage : 24V ( Constant current region 12-24V)
* Rated Current : 10A
* Voltage Range : 90-305VAC
* AC Current (Typ.) : 4A/115VAC ; 2A/230VAC
* Inrush Current (Typ.) : Cold Start 75A at 230VAC
* Over Current : 95-108%
* Working Temp. : - 40℃ ~ + 90℃
# Please download the specification for more information !
