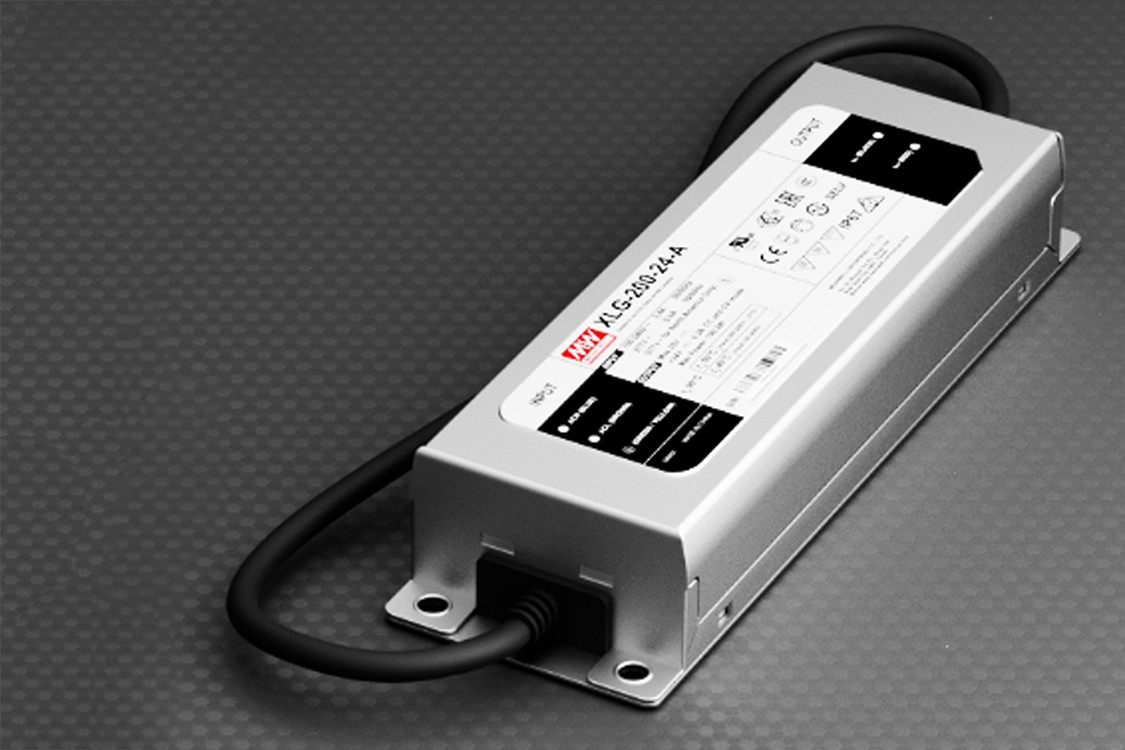

XLG SERIES
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.
TECHNICAL DATA
XLG-200
* DC Voltage : 24/12V
* Rated Current : 8.3A/16A
* Voltage Range : 100-305VAC / 142-431VAC
* AC Current (Typ.) : 2.2A/115VAC ; 1.1A/230VAC ; 0.9A/227VAC
* Inrush Current (Typ.) : Cold Start 50A at 230VAC
* Over Current : 95-108%
* Working Temp. : - 40℃ ~ + 90℃
# Please download the specification for more information !
