HLG SERIES

How to download
  • 1.Place the cursor on the image and click the mouse.

  • 2.Download the document to save it.

TECHNICAL DATA

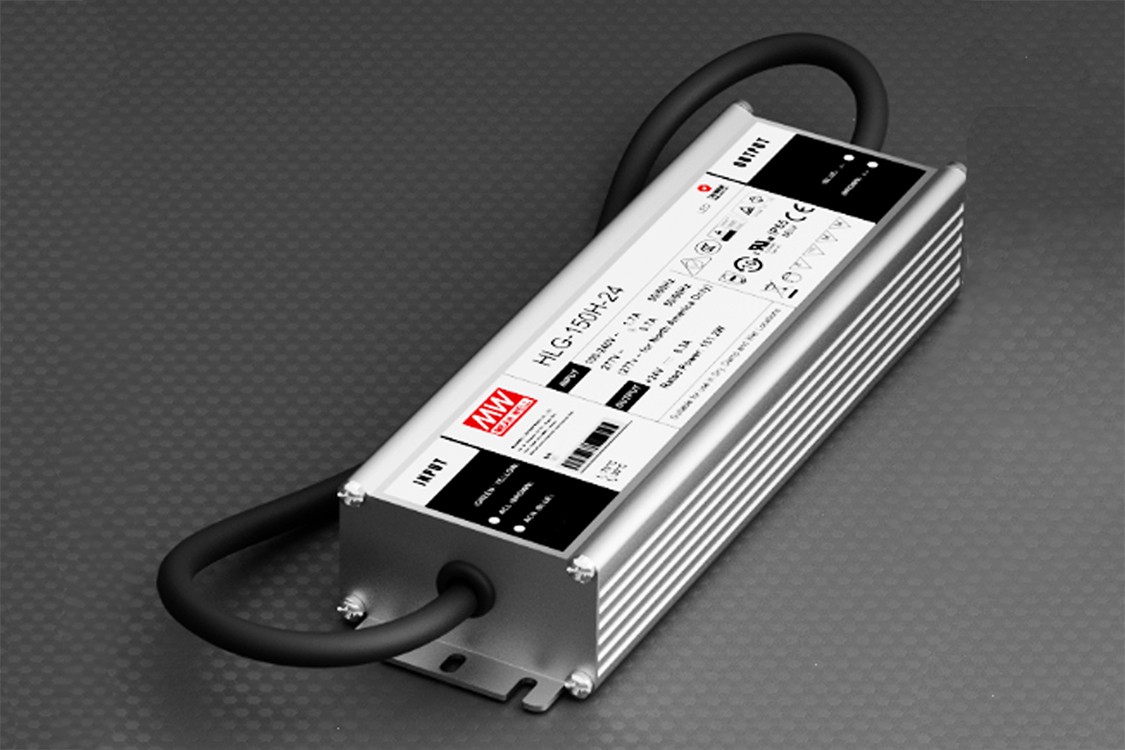

HLG-150H


* DC Voltage : 24V ( Constant current region 12-24V)


* Rated Current : 6.3A


* Voltage Range : 90-305VAC


* AC Current (Typ.) : 1.7A/115VAC ; 0.75A/230VAC


* Inrush Current (Typ.) : Cold Start 65A at 230VAC


* Over Current : 95-108%


* Working Temp. : - 40℃ ~ + 80℃



# Please download the specification for more information !
