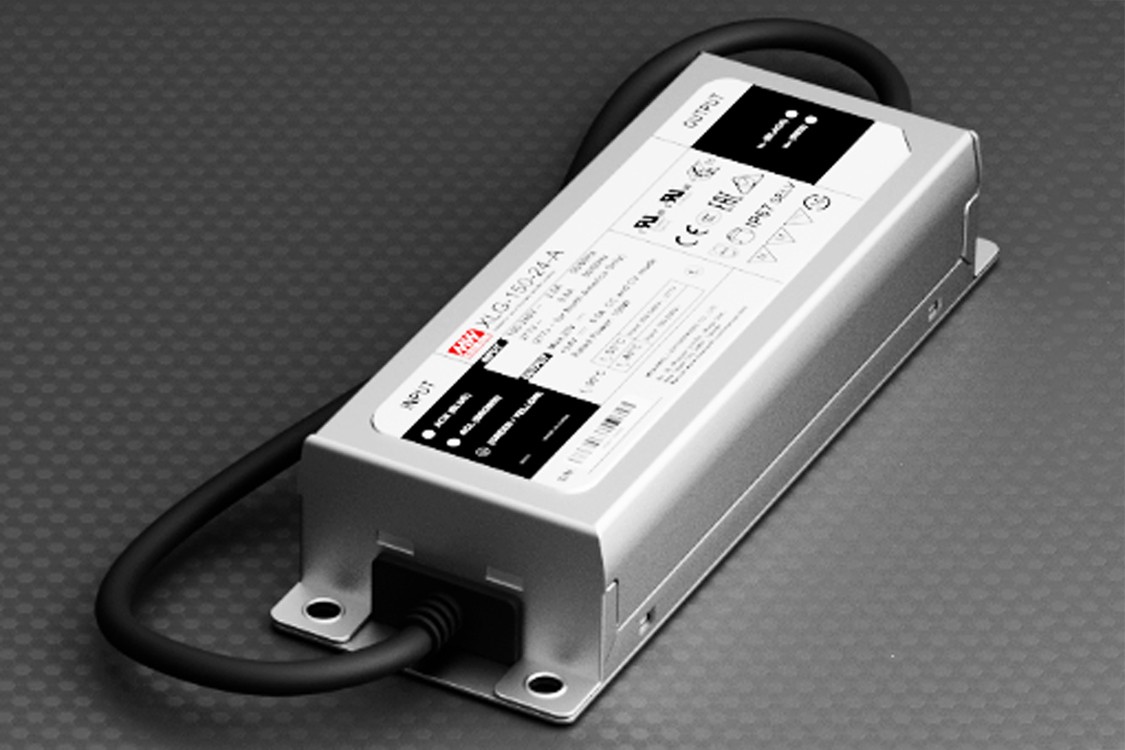

XLG SERIES
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.
TECHNICAL DATA
XLG-150
* DC Voltage : 24/12V
* Rated Current : 6.25A/12.5A
* Voltage Range : 100-305VAC / 142-431VAC
* AC Current (Typ.) : 1.8A/115VAC ; 1.0A/230VAC ; 0.8A/227VAC
* Inrush Current (Typ.) : Cold Start 50A at 230VAC
* Over Current : 95-108%
* Working Temp. : - 40℃ ~ + 90℃
# Please download the specification for more information !
