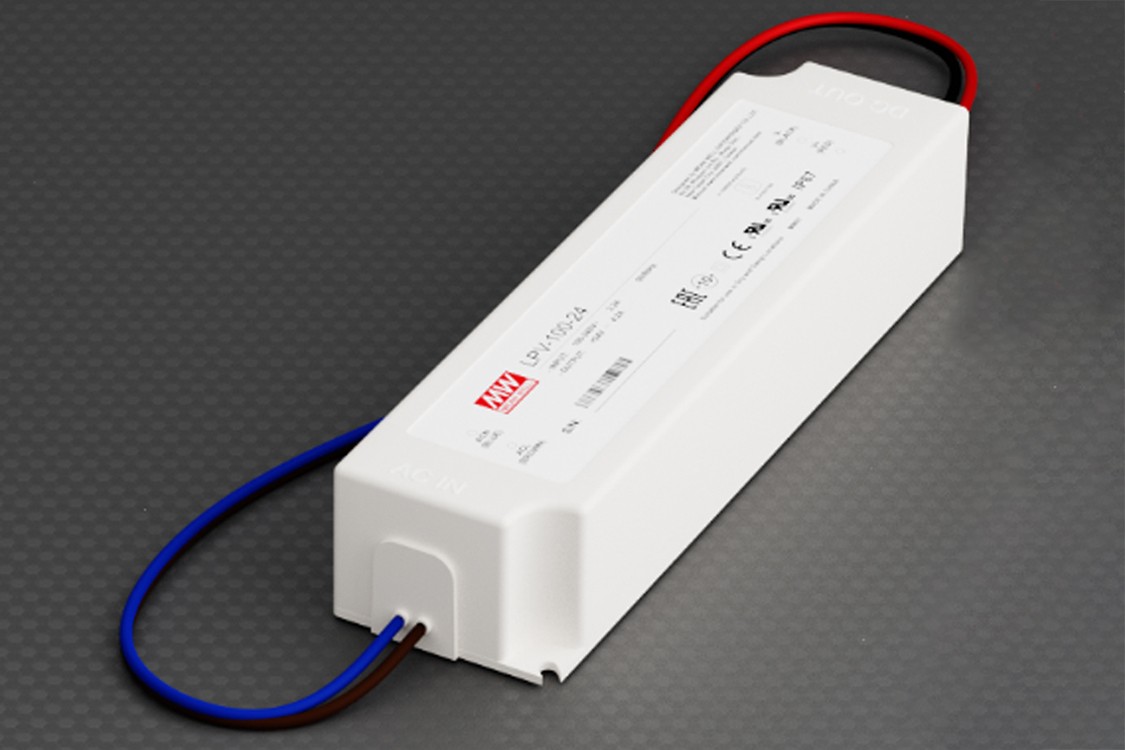

LPV SERIES
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.
TECHNICAL DATA
LPV-100
* DC Voltage : 24/12V
* Rated Current : 4.2A/8.5A
* Voltage Range : 90-264VAC
* AC Current (Typ.) : 2.2A/115VAC ; 1.2A/230VAC
* Inrush Current (Typ.) : Cold Start 75A at 230VAC
* Over Load : 110-150%
* Working Temp. : - 25℃ ~ + 70℃
# Please download the specification for more information !
