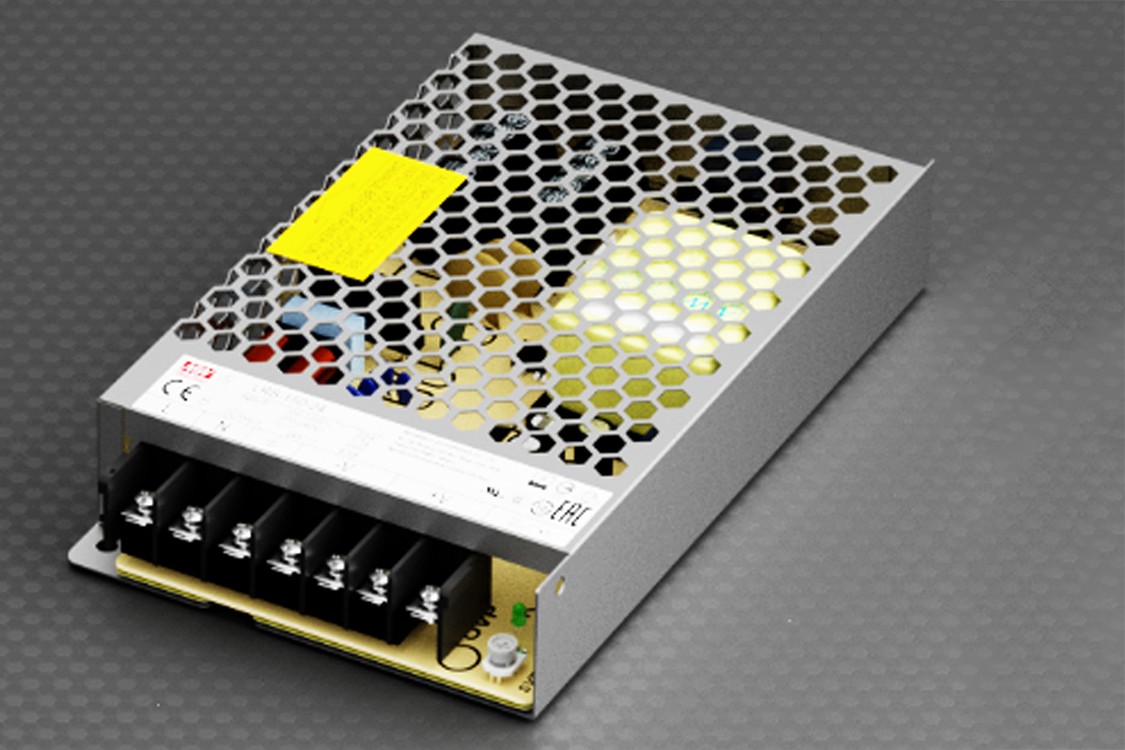

LRS SERIES
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.
TECHNICAL DATA
LRS-150
* DC Voltage : 24/12V
* Rated Current : 6.5A/12.5A
* Voltage Range : 85-132VAC/170-264VAC by switch
* AC Current (Typ.) : 3A/115VAC ; 1.7A/230VAC
* Inrush Current (Typ.) : Cold Start 60A at 230VAC
* Over Load : 110-140% Rated output power
* Working Temp. : - 30℃ ~ + 70℃
# Please download the specification for more information !
