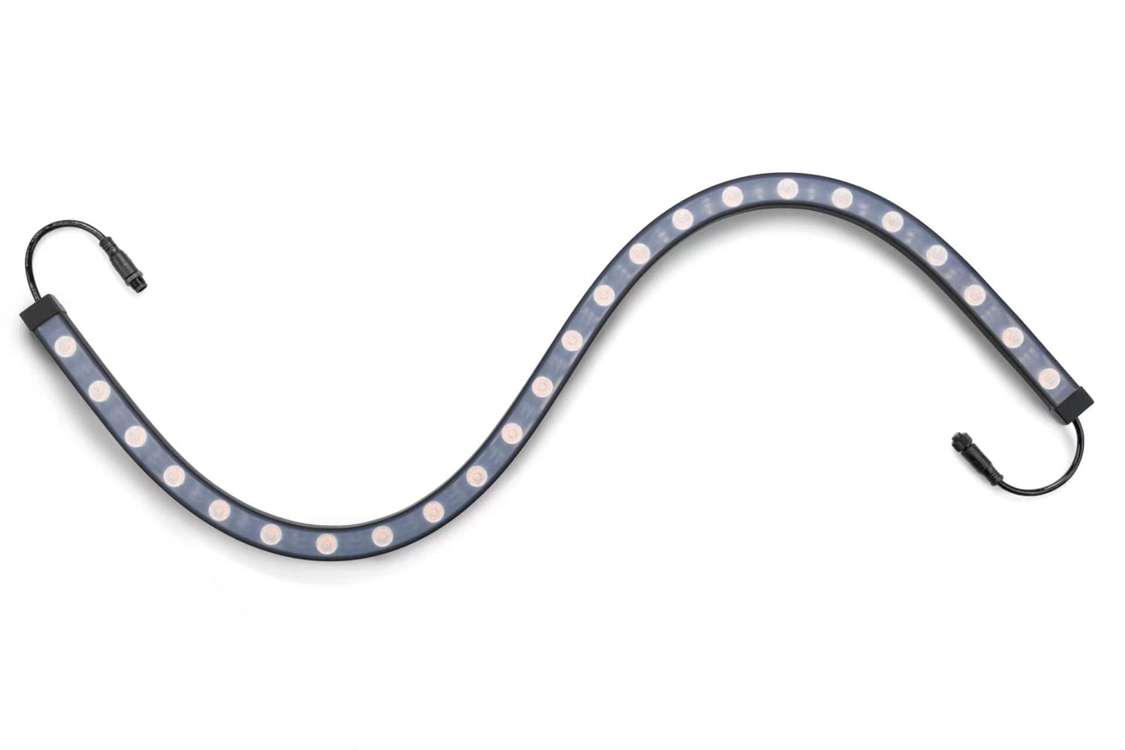

* Part # : S30F-S024B25-2F5
* RGBW SPI (W=2700K/3000K/4000K)
* CRI80
* Lens beam angle 25°, 35°, 20*45°, 20*55° Available
* IP66
* 3yrs Warranty

How to download
  • 1.Place the cursor on the image and click the mouse.

  • 2.Download the document to save it.

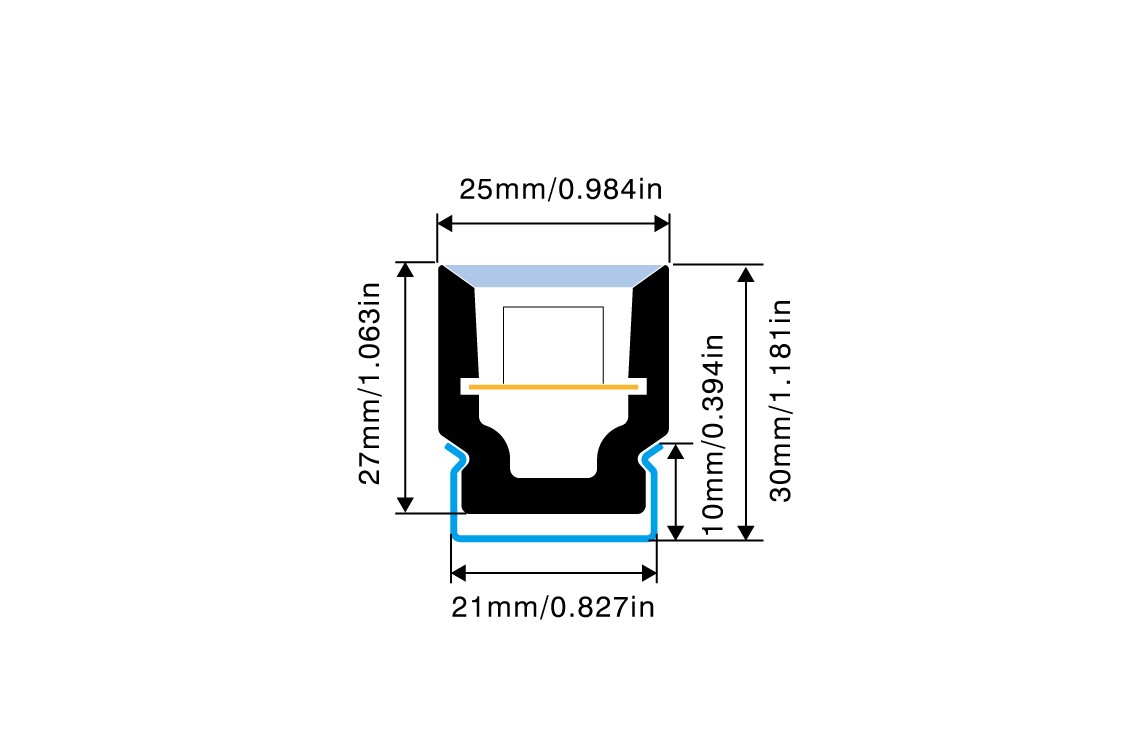

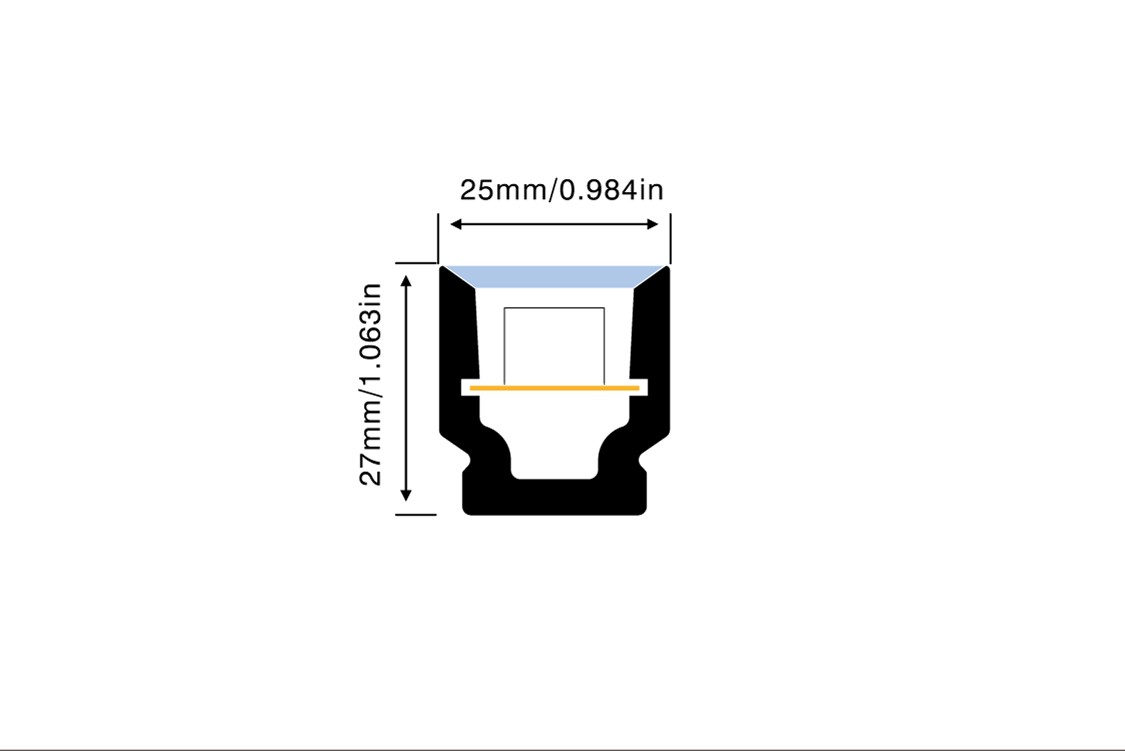

Mechanical data
Net Width25.0 mm
Net Height27.0 mm
Net Length1030.0 mm
Degree of Protection (IP)IP66
ColourRGBW Digital
LED Quantity / M24
Distance41.5 mm
Distance Relating ToLED to LED
Mini. Cut Segments280 mm
Electrical data
LED Type3030
Overall Efficiency/
Lamp Power / M18 W
Lamp Voltage24 V
Voltage TypeDC
Drive ModelCV
Protection ClassIII
Light technical data
Luminous Flux / M/
Beam Angle25°(35°/20*45°/20*55° optional)
McAdam ellipse / SDCM/
Colour Rendering Index / CRI>80
Color/CCTRGBW(2700K/3000K/4000K)
Energy Efficiency Class / ErP/
Connection
Number of Poles5
Conductor Cross Section0.55 mm²
Max. Length5pcs
Temperature technical data
L70/B50 at 25 °C36000 hrs
Ambient/Operating Temp.- 20 ...  + 55 °C
Ambient/Storage Temp.- 40 ...  + 80 °C
Operation Temp. at Tc- 20 ...  + 75 °C
Packaging information
HS Code9405429000
Dimension of Carton117*23*19cm
Length / pcs1mts
Total Quantity / Carton20pcs
Net Weight14kgs
Gross Weight15kgs
CBM0.052






* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.


* The heat sinking measures must be taken if the electrical power more than 16W/m.
