* Part # : S30D-S024B25-2A5
* SDCM<5step, One Bin Only
* CRI80,90 Optional
* Lens beam angle 25°, 35°, 20*45°, 20*55° Available
* IP66
* 5yrs Warranty
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.

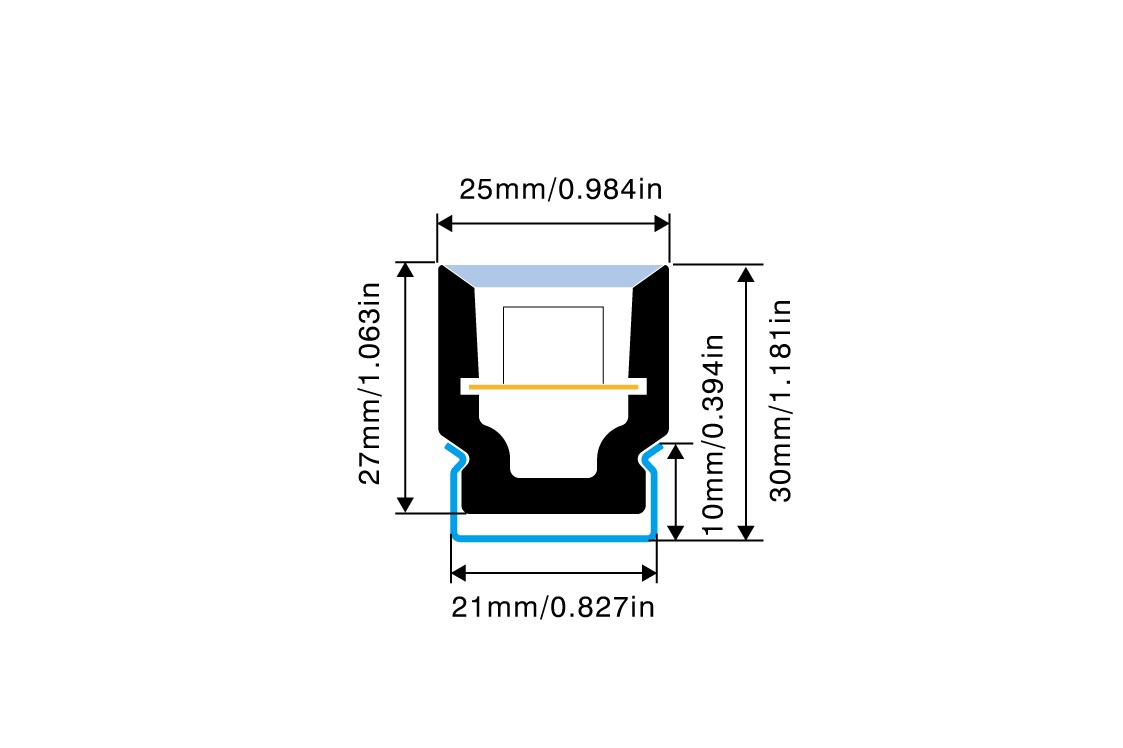

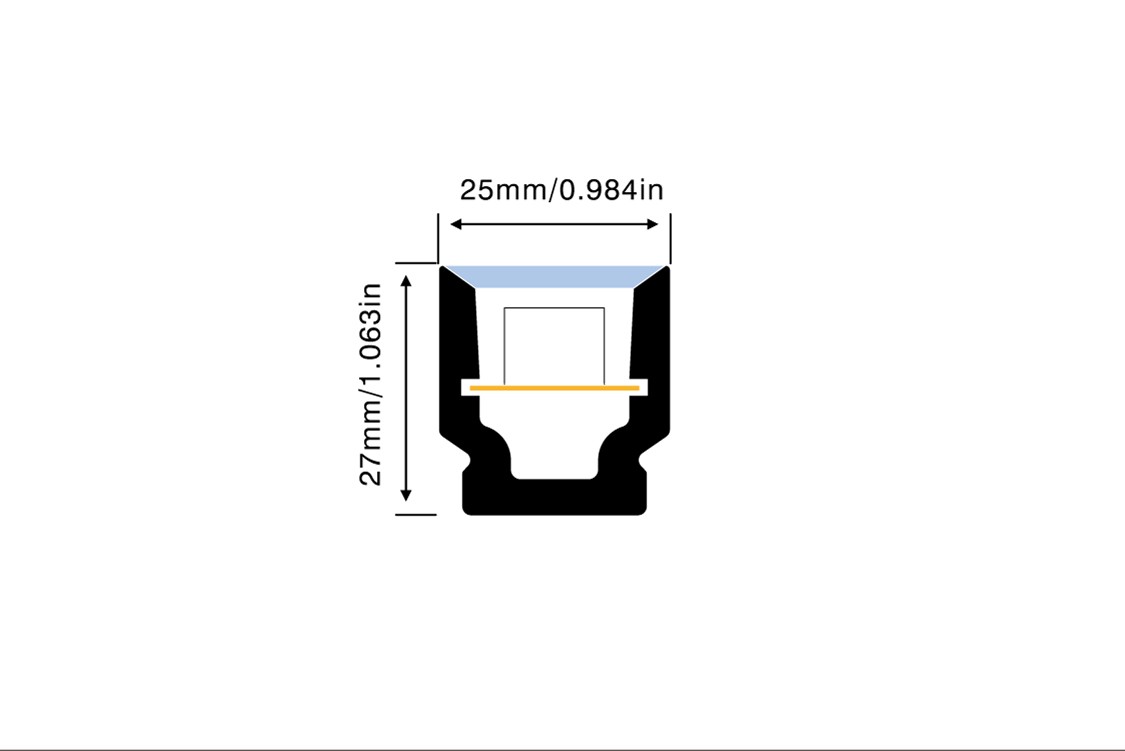

| Mechanical data | |
|---|---|
| Net Width | 25.0 mm |
| Net Height | 27.0 mm |
| Net Length | 1030.0 mm |
| Degree of Protection (IP) | IP66 |
| Colour | White |
| LED Quantity / M | 24 |
| Distance | 41.5 mm |
| Distance Relating To | LED to LED |
| Mini. Cut Segments | 280 mm |
| Electrical data | |
|---|---|
| LED Type | 3030 |
| Overall Efficiency | 50 lm / W |
| Lamp Power / M | 18 W |
| Lamp Voltage | 24 V |
| Voltage Type | DC |
| Drive Model | CV |
| Protection Class | III |
| Light technical data | |
|---|---|
| Luminous Flux / M | 900 lm |
| Beam Angle | 25°(35°/20*45°/20*55° optional) |
| McAdam ellipse / SDCM | ≤5 |
| Colour Rendering Index / CRI | >90 |
| CCT Tunable | 2700-6000 K |
| Energy Efficiency Class / ErP | G |
| Connection | |
|---|---|
| Number of Poles | 2 |
| Conductor Cross Section | 0.55 mm² |
| Max. Length | 5pcs |
| Temperature technical data | |
|---|---|
| L70/B50 at 25 °C | 36000 hrs |
| Ambient/Operating Temp. | - 20 ... + 55 °C |
| Ambient/Storage Temp. | - 40 ... + 80 °C |
| Operation Temp. at Tc | - 20 ... + 75 °C |
| Packaging information | |
|---|---|
| HS Code | 9405429000 |
| Dimension of Carton | 117*23*19cm |
| Length / pcs | 1mts |
| Total Quantity / Carton | 20pcs |
| Net Weight | 14kgs |
| Gross Weight | 15kgs |
| CBM | 0.052 |
* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.
* The heat sinking measures must be taken if the electrical power more than 16W/m.
