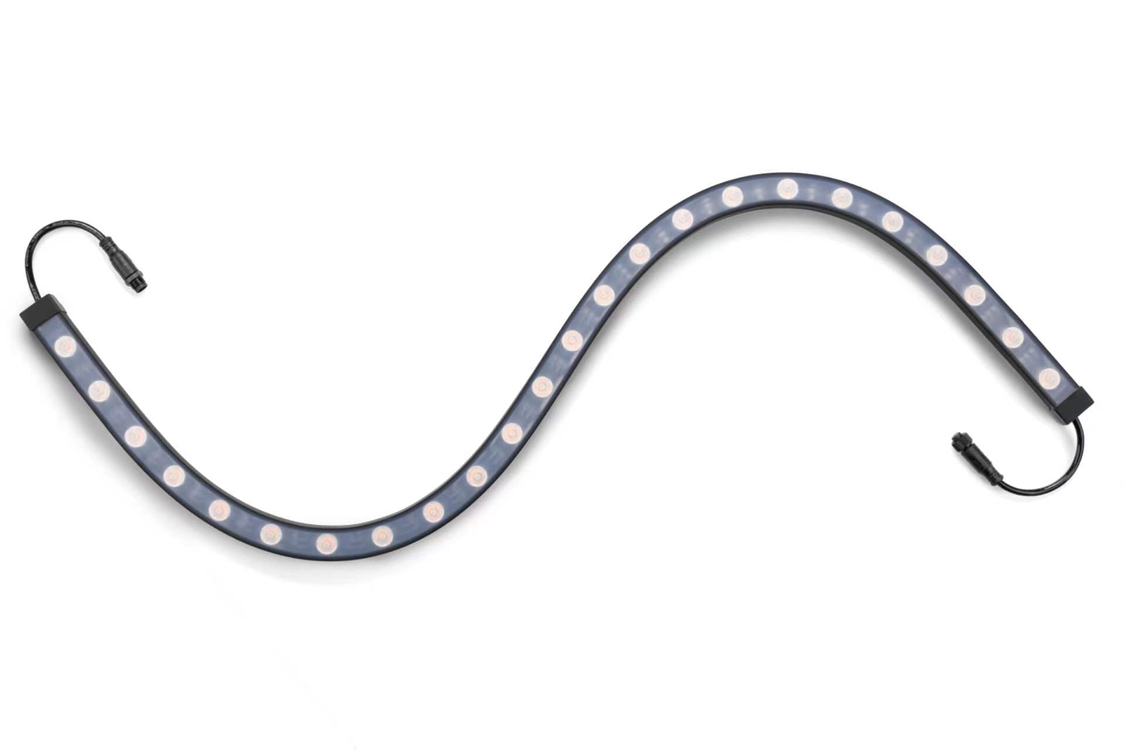

* Part # : S30F-S024B25-2A5

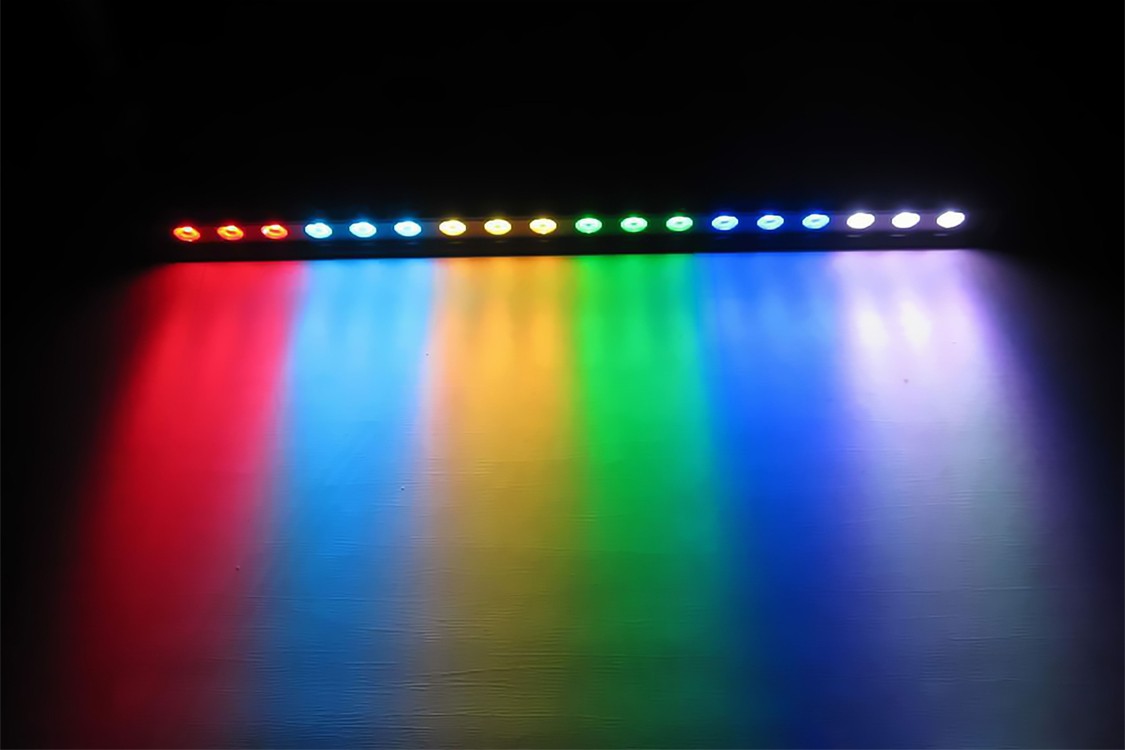

* RGBW (W=2700K/3000K/4000K)
* CRI80
* Lens beam angle 25°, 35°, 20*45°, 20*55° Available
* IP66
* 5yrs Warranty
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.

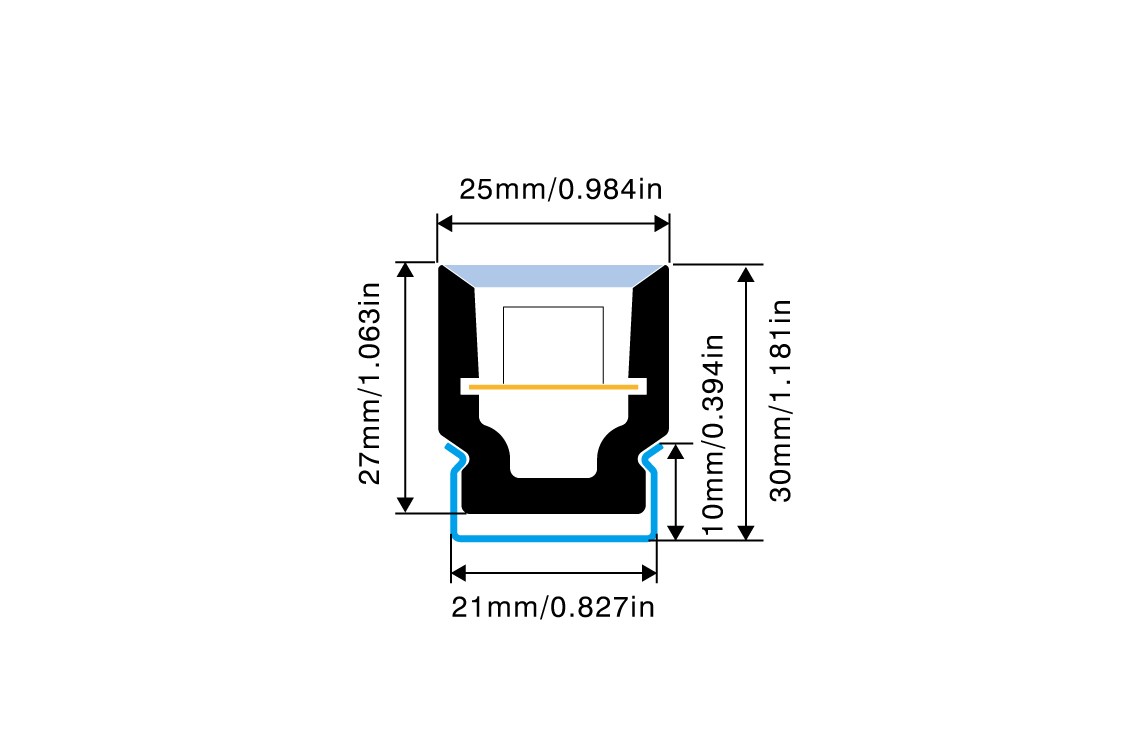

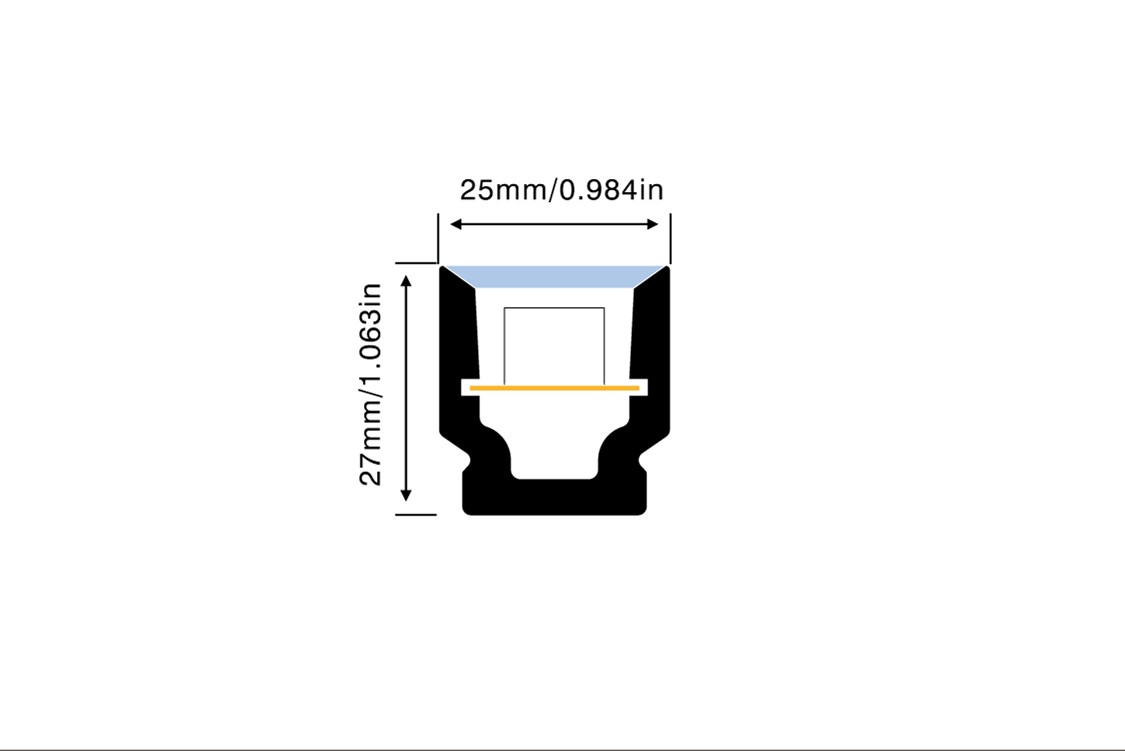

Mechanical data | |
---|---|
Net Width | 25.0 mm |
Net Height | 27.0 mm |
Net Length | 1030.0 mm |
Degree of Protection (IP) | IP66 |
Colour | RGBW |
LED Quantity / M | 24 |
Distance | 41.5 mm |
Distance Relating To | LED to LED |
Mini. Cut Segments | 280 mm |
Electrical data | |
---|---|
LED Type | 3030 |
Overall Efficiency | / |
Lamp Power / M | 18 W |
Lamp Voltage | 24 V |
Voltage Type | DC |
Drive Model | CV |
Protection Class | III |
Light technical data | |
---|---|
Luminous Flux / M | / |
Beam Angle | 25°(35°/20*45°/20*55° optional) |
McAdam ellipse / SDCM | / |
Colour Rendering Index / CRI | >80 |
Color/CCT | RGBW/(2700K/3000K/4000K) |
Energy Efficiency Class / ErP | / |
Connection | |
---|---|
Number of Poles | 5 |
Conductor Cross Section | 0.55 mm² |
Max. Length | 5pcs |
Temperature technical data | |
---|---|
L70/B50 at 25 °C | 36000 hrs |
Ambient/Operating Temp. | - 20 ... + 55 °C |
Ambient/Storage Temp. | - 40 ... + 80 °C |
Operation Temp. at Tc | - 20 ... + 75 °C |
Packaging information | |
---|---|
HS Code | 9405429000 |
Dimension of Carton | 117*23*19cm |
Length / pcs | 1mts |
Total Quantity / Carton | 20pcs |
Net Weight | 14kgs |
Gross Weight | 15kgs |
CBM | 0.052 |
* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.
* The heat sinking measures must be taken if the electrical power more than 16W/m.
