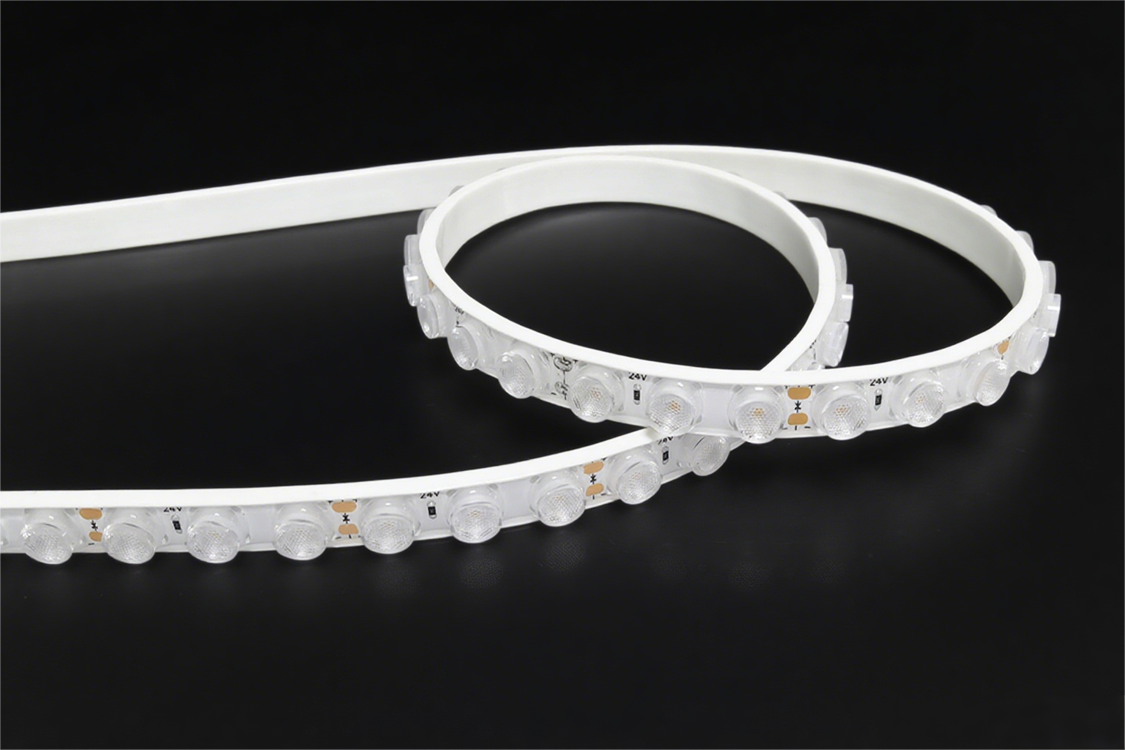

* Part # : S28W-S060W12-2A3-1409
* SDCM<3step, One Bin Only
* CRI80,90 Optional
* Beam angle 30°
* IP66
* 5yrs Warranty

How to download
  • 1.Place the cursor on the image and click the mouse.

  • 2.Download the document to save it.

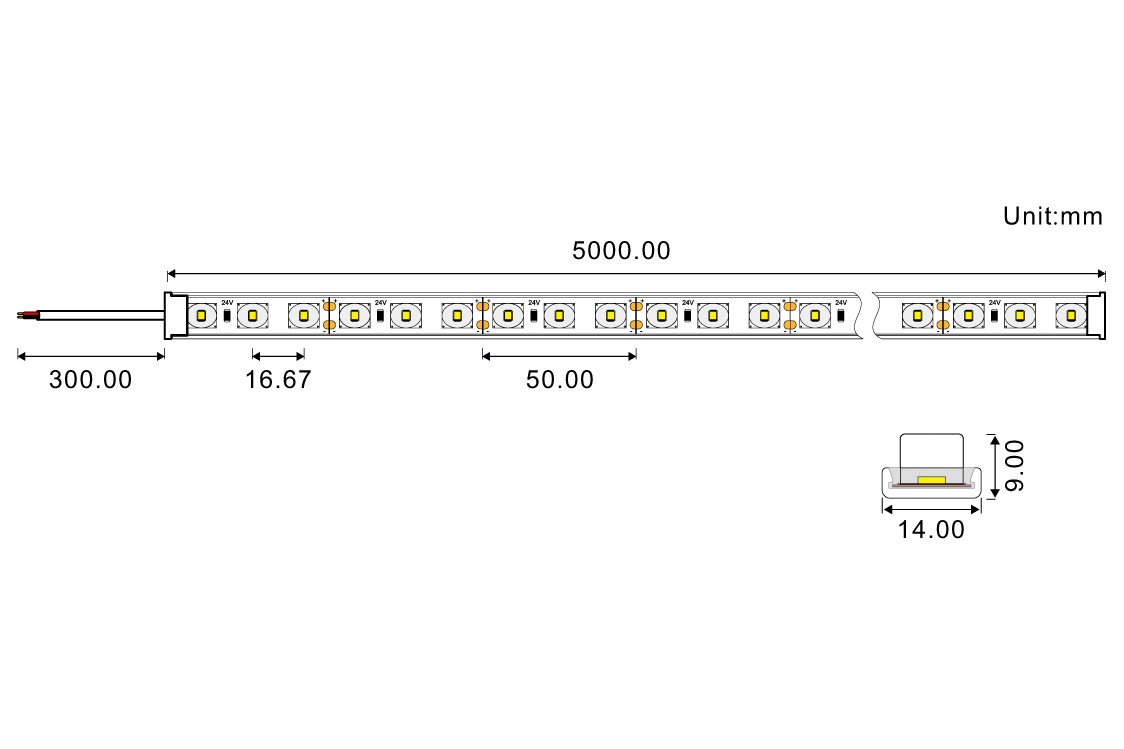

Mechanical data
Net Width14.0 mm
Net Height9.0 mm
Net Length5000.0 mm
Degree of Protection (IP)IP66
LED Quantity / M60
Distance16.67 mm
Distance Relating ToLED to LED
Mini. Cut Segments50 mm
Electrical data
LED Type2835
Overall Efficiency78 lm / W
Lamp Power / M18 W
Lamp Voltage24 V
Voltage TypeDC
Protection ClassIII
Light technical data
Luminous Flux / M1400 lm
Beam Angle30°
McAdam ellipse / SDCM≤3
Colour Rendering Index / CRI>90
Colour Temperature / CCT4000 K
Energy Efficiency Class / ErPG
Number of Poles2
Conductor Cross Section0.51 mm²
Max. Length5mts
Temperature technical data
L70/B50 at 25 °C36000 hrs
Ambient/Operating Temp.- 20 ...  + 55 °C
Ambient/Storage Temp.- 40 ...  + 80 °C
Operation Temp. at Tc- 20 ...  + 75 °C
Packaging information
HS Code9405429000
Dimension of Carton47*30*30cm
Length / pcs5mts
Total Quantity / Carton20pcs
Net Weight12.8kgs
Gross Weight13.5kgs

* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.

* The heat sinking measures must be taken if the electrical power more than 16W/m.
