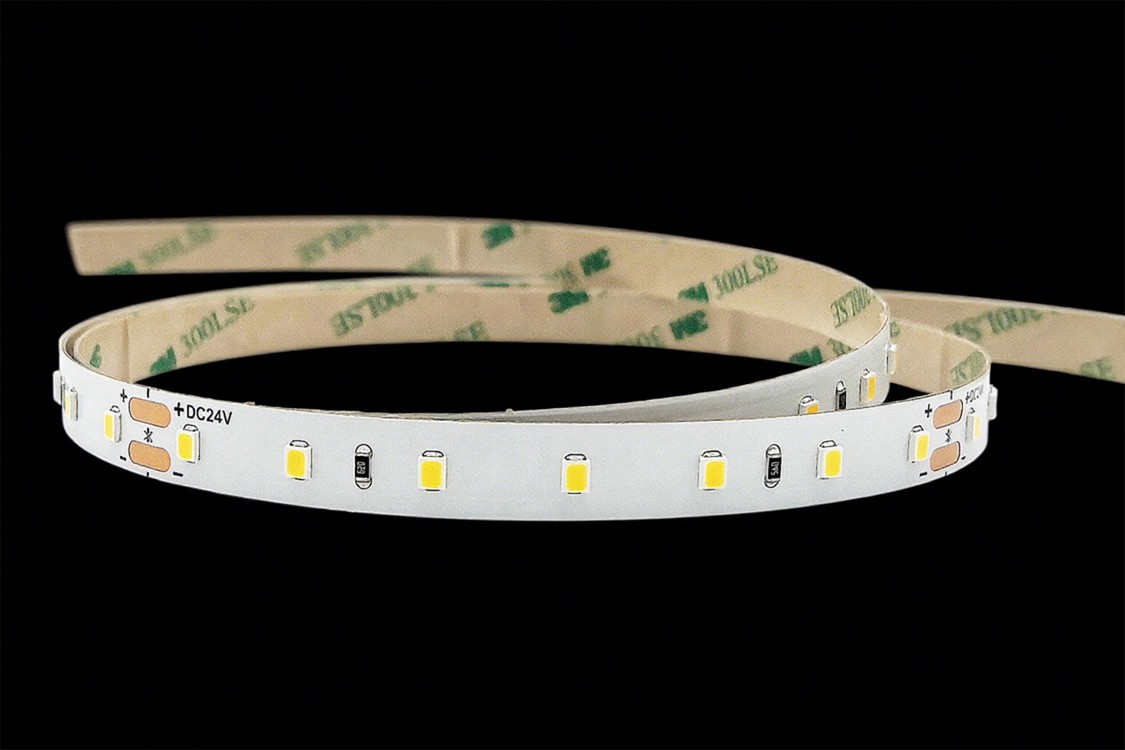

* Part # : S28W-S070W10-2A0
* SDCM<3step, One Bin Only
* CRI80,90,95 Optional
* PCB 2oz, 3oz Available
* IP20, 55, 65, 66, 68 Optional
* 5yrs Warranty

How to download
  • 1.Place the cursor on the image and click the mouse.

  • 2.Download the document to save it.


Mechanical data
Net Width10.0 mm
Net Height1.4 mm
Net Length5000.0 mm
Degree of Protection (IP)IP20
ColourWhite
LED Quantity / M70
Distance14.29 mm
Distance Relating ToLED to LED
Mini. Cut Segments100.0 mm
Electrical data
LED Type2835
Overall Efficiency130 lm / W
Lamp Power / M7.2 W
Lamp Voltage24 V
Voltage TypeDC
Protection ClassIII
Light technical data
Luminous Flux / M950 lm
Beam Angle120°
McAdam ellipse / SDCM≤3
Colour Rendering Index / CRI>80
Colour Temperature / CCT4000 K
Energy Efficiency Class / ErPE
Connection
Number of Poles2
Conductor Cross Section0.80 mm²
Max. Length6000.0 mm
Temperature technical data
L70/B50 at 25 °C50000 hrs
Ambient/Operating Temp.- 20 ...  + 55 °C
Ambient/Storage Temp.- 40 ...  + 80 °C
Operation Temp. at Tc- 20 ...  + 75 °C
Packaging information
HS Code9405429000
Dimension of Carton45*26*27cm
Length / Roll5mts
Total Quantity / Carton250mts
Net Weight6.2kgs
Gross Weight6.8kgs
CBM0.0323






* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.


* The heat sinking measures must be taken if the electrical power more than 16W/m.
