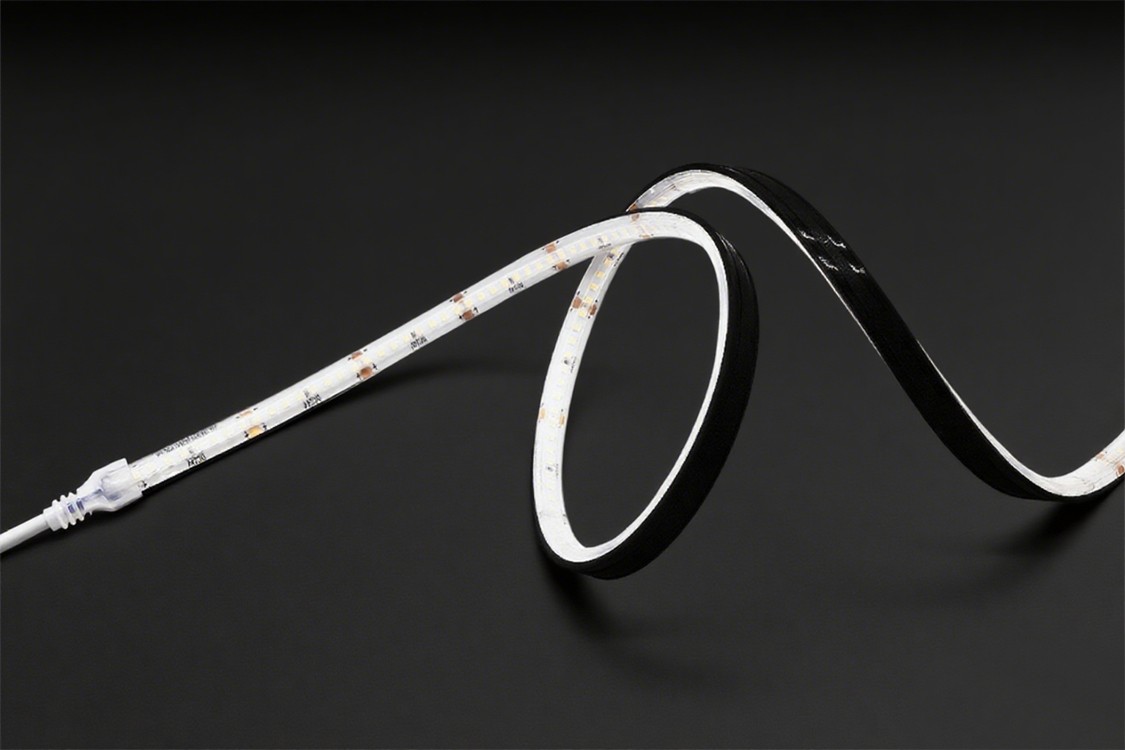

* Part # : S28W-S160W10-2A5
* High efficiency max. up to 200lm/W
* CRI80,90,95 Optional
* PCB 2oz, 3oz Available
* IP66
* 5yrs Warranty

How to download
  • 1.Place the cursor on the image and click the mouse.

  • 2.Download the document to save it.

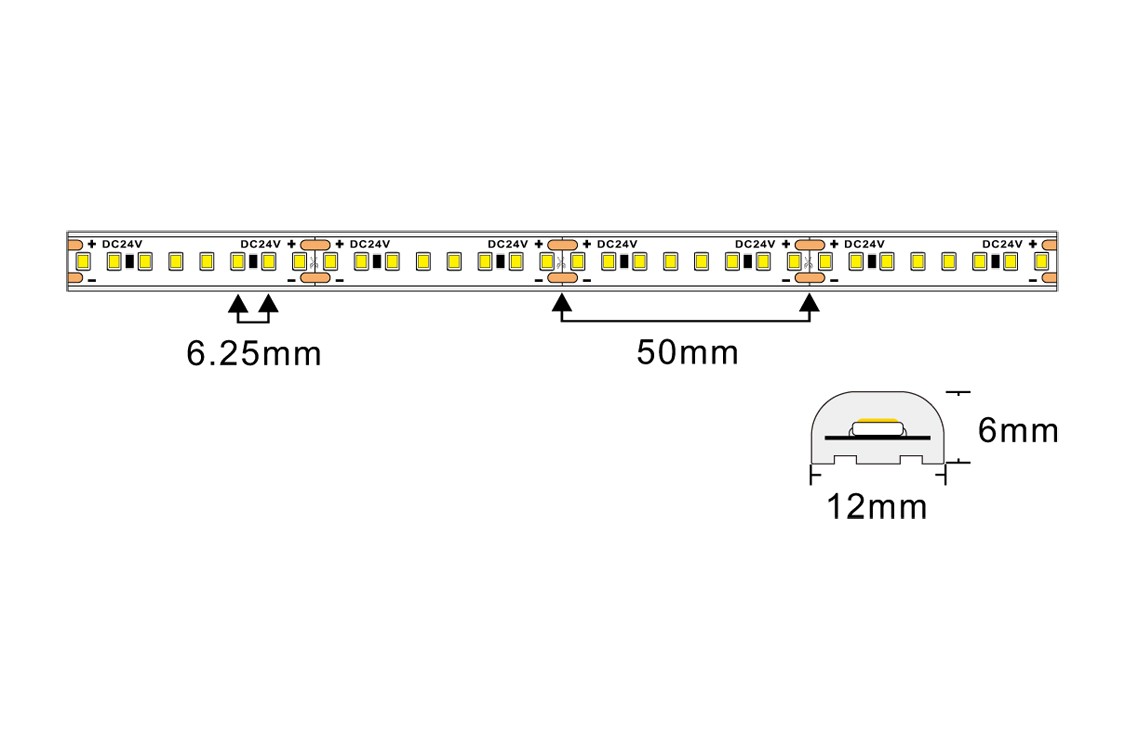

Mechanical data
Net Width12.0 mm
Net Height6.0 mm
Net Length10000.0 mm
Degree of Protection (IP)IP66
ColourWhite
LED Quantity / M160
Distance6.25 mm
Distance Relating ToLED to LED
Mini. Cut Segments50.0 mm
Electrical data
LED Type2835
Overall Efficiency180 lm / W
Lamp Power / M11 W
Lamp Voltage24 V
Voltage TypeDC
Drive ModelCV
Protection ClassIII
Light technical data
Luminous Flux / M1775 lm
Beam Angle120°
McAdam ellipse / SDCM≤3
Colour Rendering Index / CRI>80
Colour Temperature / CCT4000 K
Energy Efficiency Class / ErPD
Connection
Number of Poles2
Conductor Cross Section0.80 mm²
Max. Length12000.0 mm
Temperature technical data
L70/B50 at 25 °C36000 hrs
Ambient/Operating Temp.- 20 ...  + 55 °C
Ambient/Storage Temp.- 40 ...  + 80 °C
Operation Temp. at Tc- 20 ...  + 60 °C
Packaging information
HS Code9405429000
Dimension of Carton41*41*13cm
Length / Roll10mts
Total Quantity / Carton80mts
Net Weight11.4kgs
Gross Weight12.0kgs
CBM0.0219






* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.


* The heat sinking measures must be taken if the electrical power more than 16W/m.
