* Part # : S22W-S350W08-2A5
* SDCM<5step, One Bin Only
* CRI90
* PCB 2oz, 3oz Available
* IP66
* 3yrs Warranty

How to download
  • 1.Place the cursor on the image and click the mouse.

  • 2.Download the document to save it.

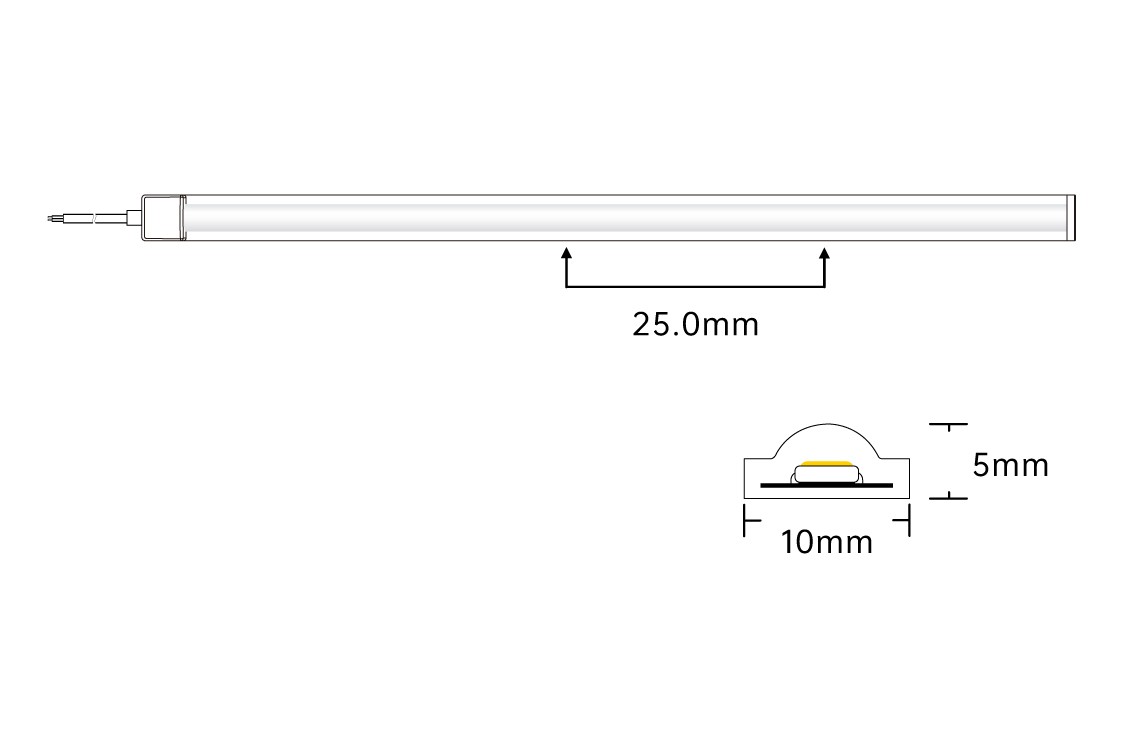

Mechanical data
Net Width10 mm
Net Height4.5 mm
Net Length5000 mm
Degree of Protection (IP)IP66
ColourWhite
LED Quantity / M350
Distance2.86 mm
Distance Relating ToLED to LED
Mini. Cut Segments20 mm
Electrical data
LED Type2216
Overall Efficiency90 lm / W
Lamp Power / M9.6 W
Lamp Voltage24 V
Voltage TypeDC
Drive ModelCV
Protection ClassIII
Light technical data
Luminous Flux / M840 lm
Beam Angle180°
McAdam ellipse / SDCM≤5
Colour Rendering Index / CRI>90
Colour Temperature / CCT3000 K
Energy Efficiency Class / ErPF
Connection
Number of Poles2
Conductor Cross Section0.35 mm²
Max. Length5000.0 mm
Temperature technical data
L70/B50 at 25 °C36000 hrs
Ambient/Operating Temp.- 20 ...  + 55 °C
Ambient/Storage Temp.- 40 ...  + 80 °C
Operation Temp. at Tc- 20 ...  + 75 °C
Packaging information
HS Code9405429000
Dimension of Carton45*25*26cm
Length / Roll5mts
Total Quantity / Carton150mts
Net Weight9.4kgs
Gross Weight10kgs
CBM0.0323






* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.


* The heat sinking measures must be taken if the electrical power more than 16W/m.
