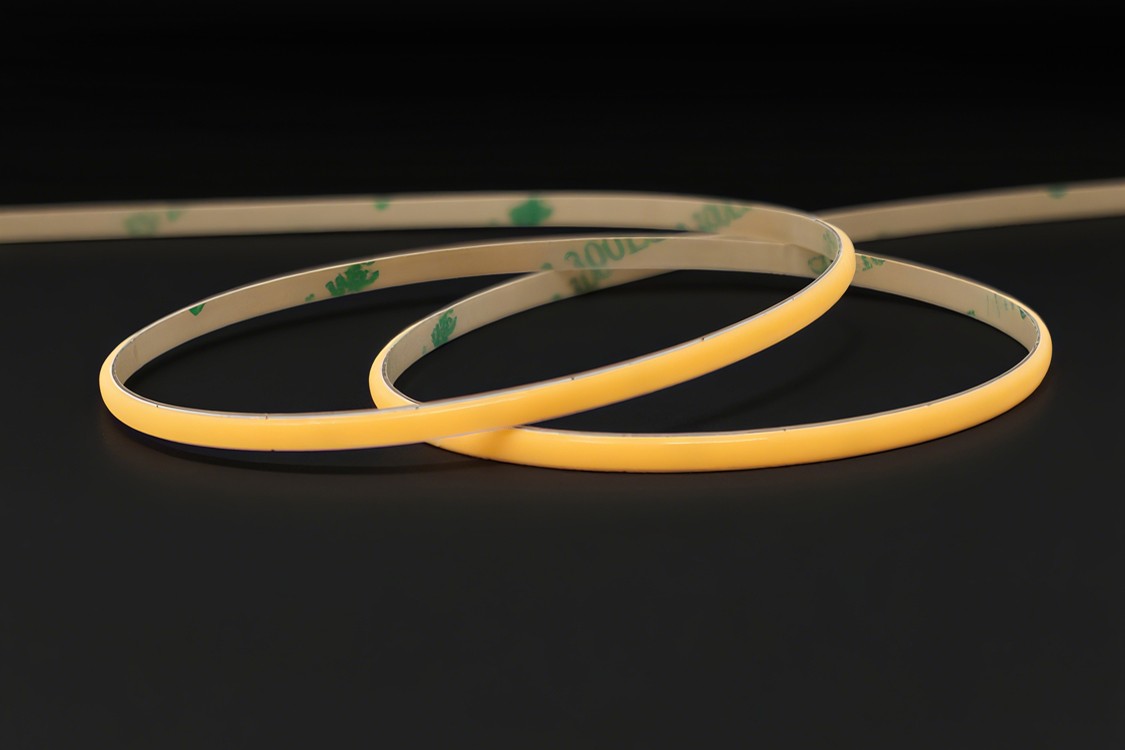

* Part # : SCBW-S504W05-2A0
* SDCM<3step, One Bin Only
* CRI80,90 Optional
* PCB 2oz
* IP20, 66 Optional
* 2yrs Warranty

How to download
  • 1.Place the cursor on the image and click the mouse.

  • 2.Download the document to save it.


Mechanical data
Net Width5.0 mm
Net Height2.0 mm
Net Length5000.0 mm
Degree of Protection (IP)IP20
ColourWhite
LED Quantity / M504
Mini. Cut Segments13.89 mm
Electrical data
Overall Efficiency80 lm / W
Lamp Power / M6 W
Lamp Voltage24 V
Voltage TypeDC
Drive ModelCV
Protection ClassIII
Light technical data
Luminous Flux / M480 lm
Beam Angle180°
McAdam ellipse / SDCM≤3
Colour Rendering Index / CRI>90
Colour Temperature / CCT3000 K
Energy Efficiency Class / ErPG
Connection
Number of Poles2
Conductor Cross Section0.32 mm²
Max. Length5000.0 mm
Temperature technical data
L70/B50 at 25 °C36000 hrs
Ambient/Operating Temp.- 20 ...  + 55 °C
Ambient/Storage Temp.- 40 ...  + 80 °C
Operation Temp. at Tc- 20 ...  + 60 °C
Packaging information
HS Code9405429000
Dimension of Carton45*26*27cm
Length / Roll5mts
Total Quantity / Carton400mts
Net Weight6.9kgs
Gross Weight7.5kgs
CBM0.0323






* The given data are typical value, due to tolerances of the production process and electrical components, These values can have a tolerance value of light output can be ±10% and electrical power can be ±10%.


* The heat sinking measures must be taken if the electrical power more than 16W/m.
