LRS SERIES
1.Place the cursor on the image and click the mouse.
2.Download the document to save it.
TECHNICAL DATA

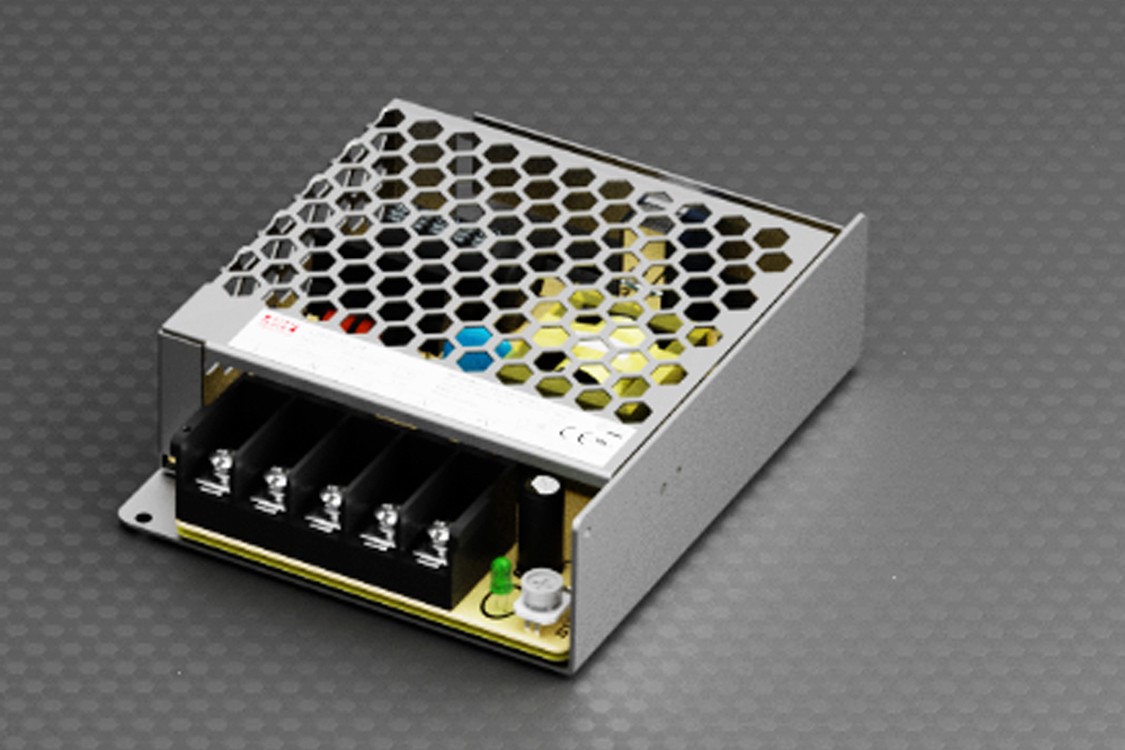

LRS-50
* DC Voltage : 24/12V
* Rated Current : 2.2A/4.2A
* Voltage Range : 85-264VAC
* AC Current (Typ.) : 0.95A/115VAC ; 0.56A/230VAC
* Inrush Current (Typ.) : Cold Start 45A at 230VAC
* Over Load : 110-150%
* Working Temp. : - 30℃ ~ + 70℃
# Please download the specification for more information !
